High Accuracy Full Automatic SMT Loader Machine PCB Loader And Unloader Machine SMT With Magazine loader
Description
PCB Loader Machines are essential components of modern SMT production lines, designed to automate the loading of printed circuit boards (PCBs) onto the conveyor system. These machines ensure accurate, consistent, and efficient handling of PCBs, reducing manual intervention and improving overall production efficiency.
●Appearance structure: sheet metal structure and aluminum profile into the frame, the surface is sprayed, and the color is white.
● Microcomputer PLC control system, stable and reliable.
● Touch screen display operation, with automatic fault diagnosis function, convenient man-machine dialogue.
●Multiple sound and light and touch screen alarm function.
● The lifting step of the rack can be set according to the thickness of the PCB.● With automatic counting function, it is convenient for production statistics.
● Humanized design ensures that the PCB board will not be broken, improving output capacity
Product Specification
| Product information |
| Sr. No. | Model | HXL-L250 | HXT-L330 | HXT-L390 |
| 1 | Applicable frame size | 355*320*563mm | 460*400*563mm | 535*460*570mm |
| 2 | PCB board size (MM) | 350* (50-250) | 460* (50-330) | 510 (50-390) |
| 3 | PCB thickness | 0.6-3.0mm | 0.6-3.0mm | 0.6-3.0mm |
| 4 | Number of storage boards | 50PCS | 50PCS | 50PCS |
| 5 | Teleport height | 900±20mm | 900±20mm | 900±20mm |
| 6 | Delivery weight | 60~200og | 60~200og | 60~200og |
| 7 | Body size L*W*H (MM) | 1150*800*1300 | 1550*800*1300 | 1650*870*1300 |
| 8 | Body weight | 180KG | 200KG | 250KG |
| Control System |
| 9 | Power supply | Single phase 220V | Single phase 220V | Single phase 220V |
| 10 | Starting power/no-load power | 105W | 105W | 205W |
| 11 | Lifting step | 10, 20, 30, 40, 50 (mm) can be set arbitrarily | 10, 20, 30, 40, 50 (mm) can be set arbitrarily | 10, 20, 30, 40, 50 (mm) can be set arbitrarily |
| 12 | Compressed air | 5-6KG | 5-6KG | 5-6KG |
| 13 | Fixed side | Front fixation (rear fixation can be customized) |
| 14 | Transmission direction | Left to right (can be customized right to) |
| 15 | Step selection | 1~5 steps (10 mm step distance) |
| 16 | With stand voltage | AC terminal to ground 1500VAC, 1 minute |
| 17 | Use environment | Environment free of corrosive gas and dust |
| 18 | Anti-jamming | Voltage noise: 1000Vp-p, wave width 1us, 1 minute |
| 19 | PLC | Siemens (dedicated controller) |
| 20 | Touch screen | Samkoon4.3# smart touch screen |
| 21 | Transfer speed | 10S/PCS |
| | Accessories Brand |
| 22 | Control module | SIEMENS PLC |
| 23 | Transport motor | Chinese University of Taiwan |
| 24 | Lifting stepper motor | Chinese University of Taiwan |
| 25 | The electromagnetic valve | Air TAC |
| 26 | Lifts | One piece cast aluminum seat |
| 27 | Three-color light | Owen LED light |
| 28 | Signal communication interface | Online Connection (Standard SMEMA) |
| 29 | Sensor | OMRON |

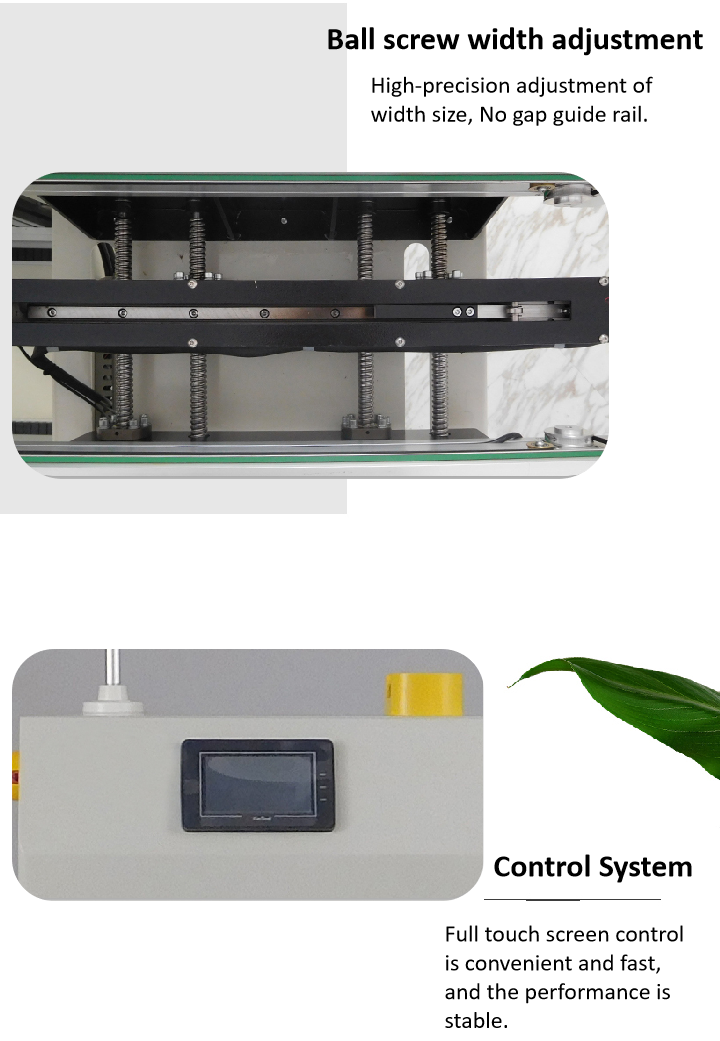

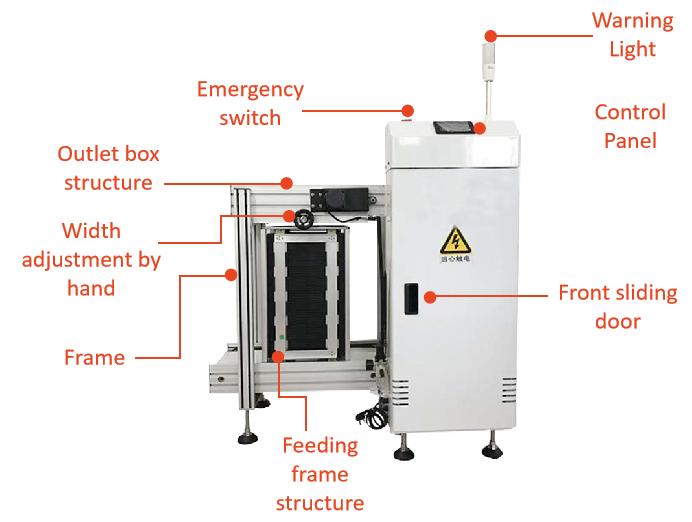

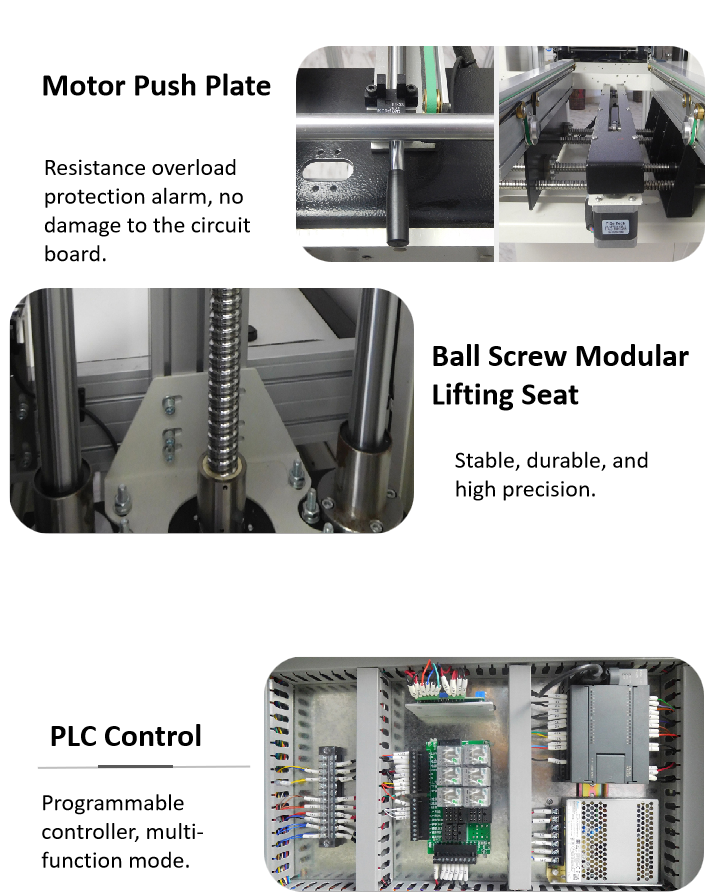

Product details
Applications:
Widely used in electronics manufacturing, consumer electronics, automobile electronics, communications equipment, aerospace, medical equipment, LED lamps, computers and peripherals, smart home, smart logistics, miniature and high power ratio electronic devices.
