Description

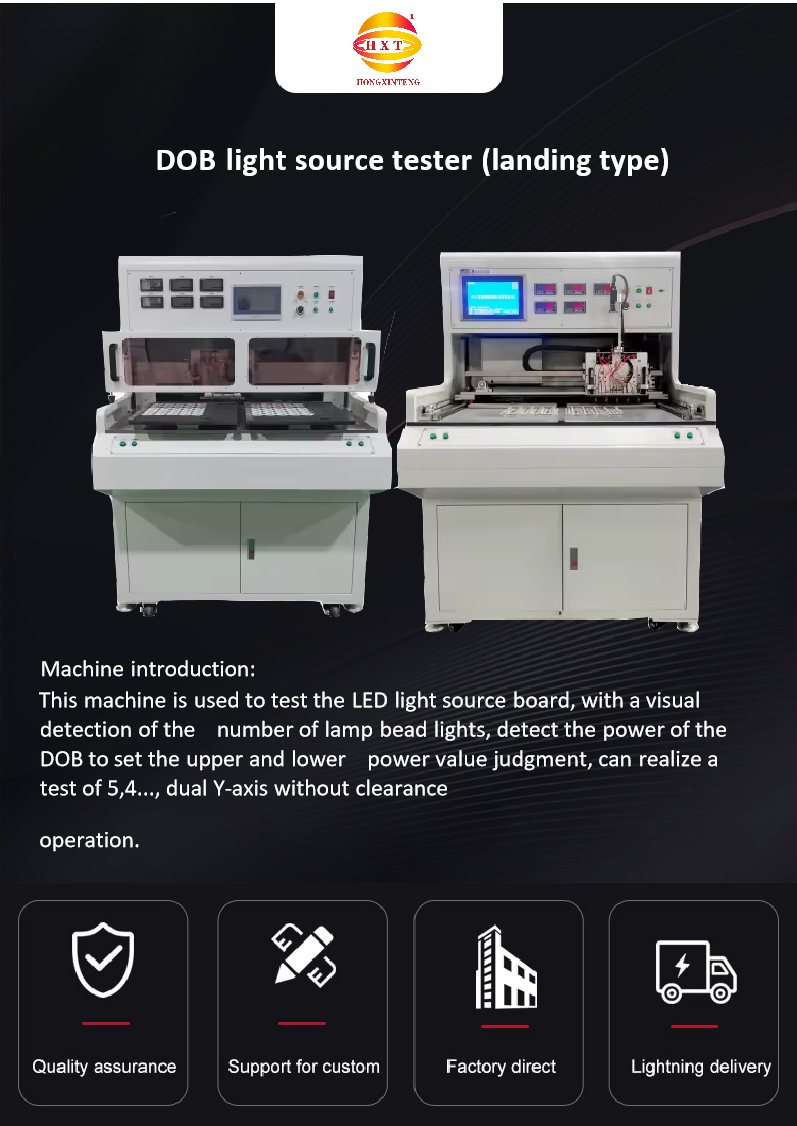

• Machine introduction:

• This machine is used to test the LED light source board, with a visual detection of the number of lamp bead lights, detect the power of the DOB to set the upper and lower power value judgment, can realize a test of 5,4..., dual Y-axis without clearance

• DOB light source testing equipment is a kind of equipment which is specially used for testing the power of light source vision and electrical parameters.

• A DOB light tester may also be called a DOB light testing device.

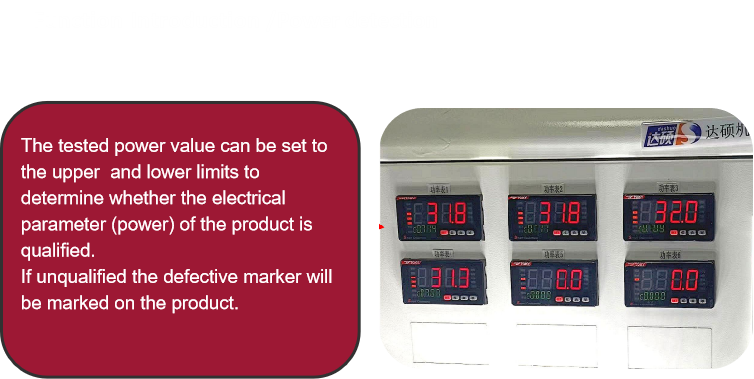

• Main functions: DOB light source detection machine is mainly used for power detection of LED light source visual and electrical parameters, to ensure that the quality and performance of light source power and wattage meet standards.

Product Specification

Product details

Equipment work requirements

1. Working environment temperature is 0~50℃.
2. Prevent strong vibration, prevent large amounts of dust and corrosion gas intrusion
3. Keep away from the strong electromagnetic dry close source when applied.

functional parameter
1. Can test the input end, AC power, up to seven test together.
2. The equipment can manually switch between AC and DC input power supply selection, with optional AC frequency conversion power supply and DC power supply, and the test voltage can be manually adjusted.

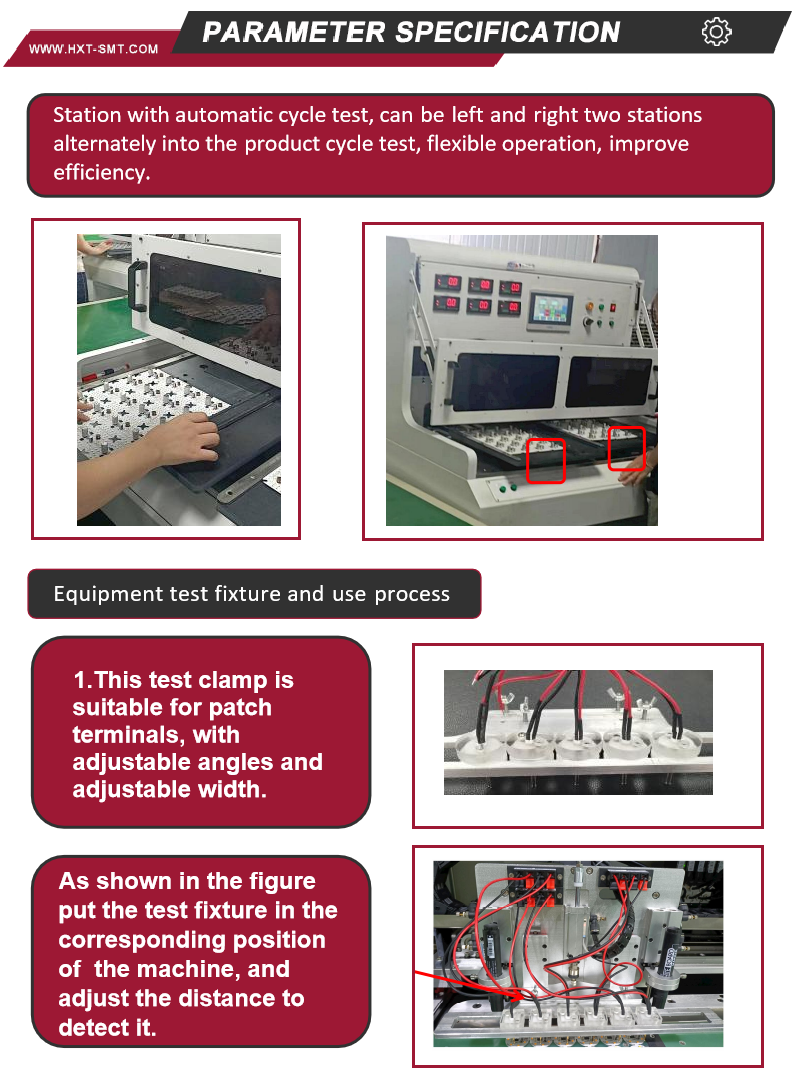

3. Two operating stations can be tested in different stations according to the actual production requirements.

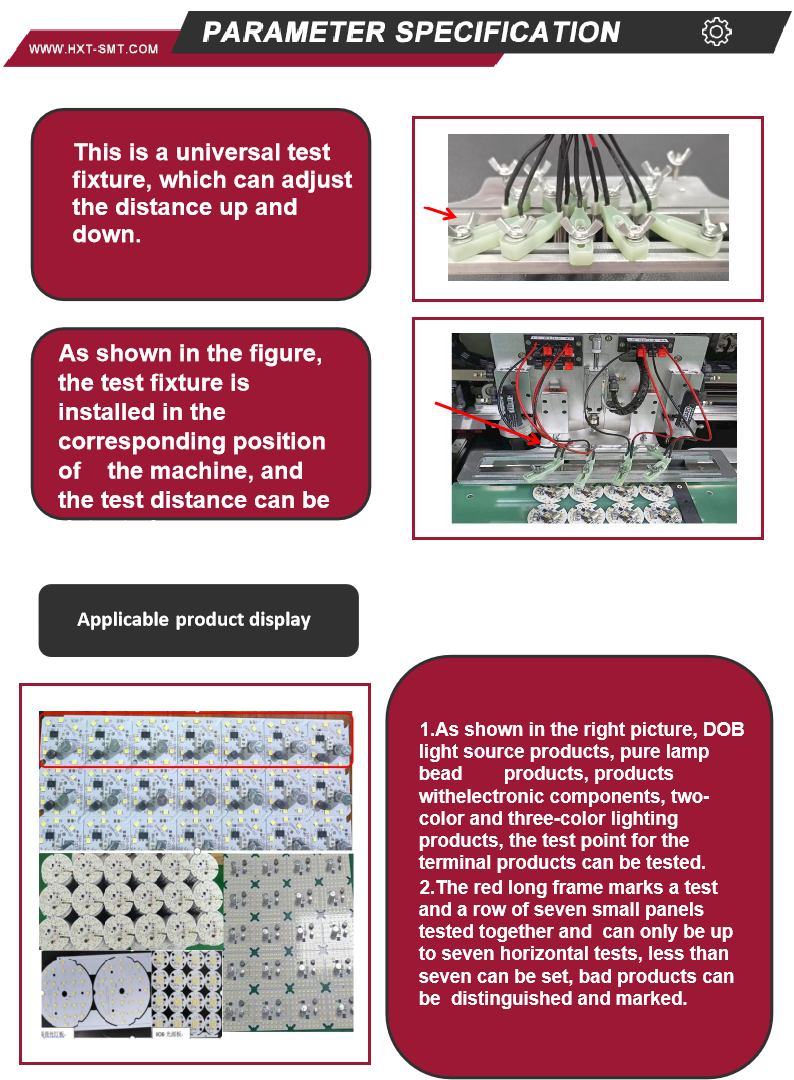

4. Different test procedures can be set according to different PCB boards, and the width of the PCB boards can be adjusted.
5. The machine test time can be set to meet different test time requirements.
6. The program formula can be saved, and different PCB tests can be replaced with the corresponding test procedures.
7. Around station can maximum 300mm * 350mm product test.
8. The cylinder stroke of the test fixture is 30mm. With electronic components on the surface of the test product, the height shall not exceed 22mm.
9. Equipment capacity: If 5 small panel products are tested in a row, if a row is tested in 3 seconds, the hourly capacity is 6000PCS h.
